Signal backup

Signal backup

Dual In-line network port design

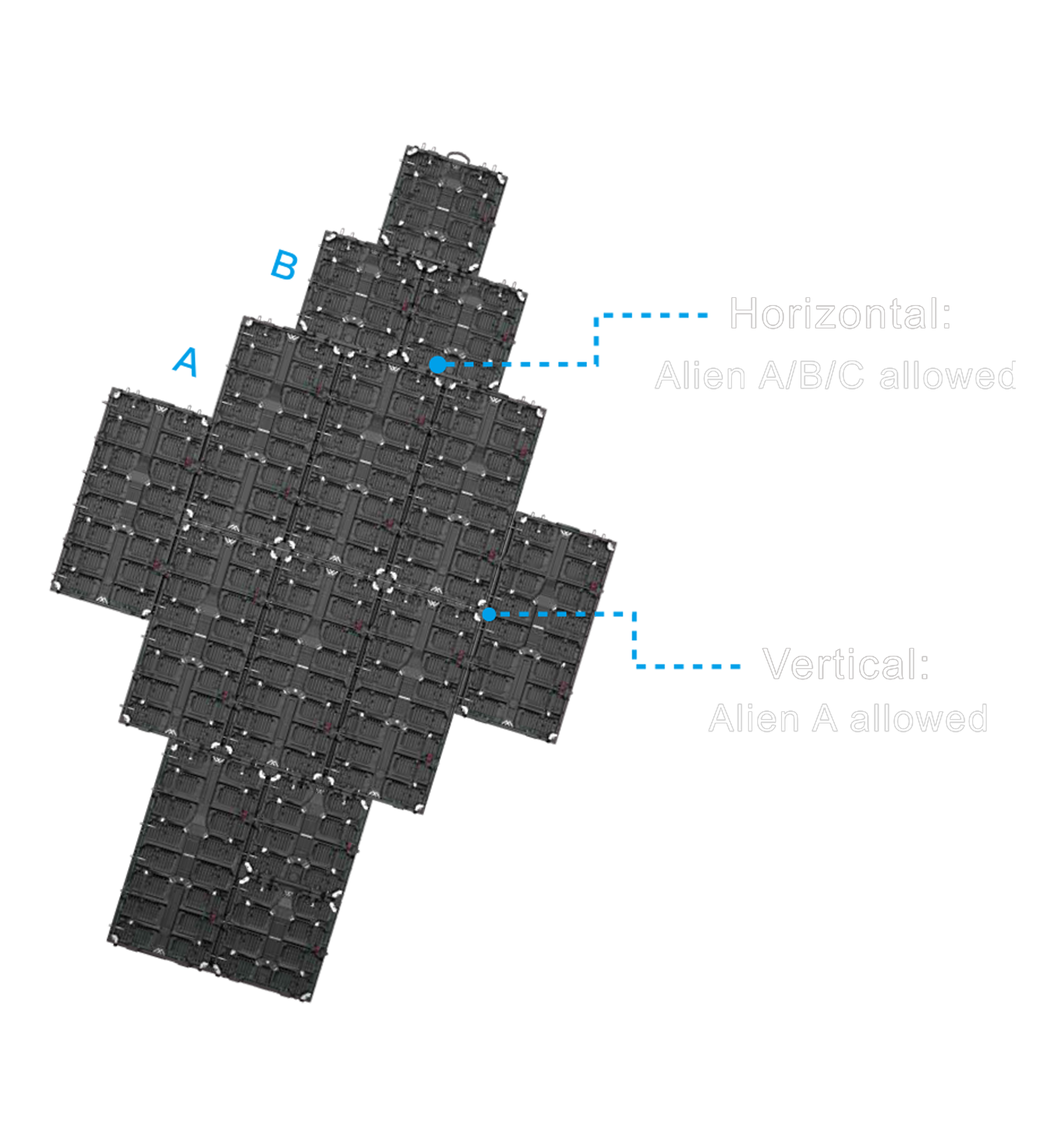

High compatibility

High compatibility

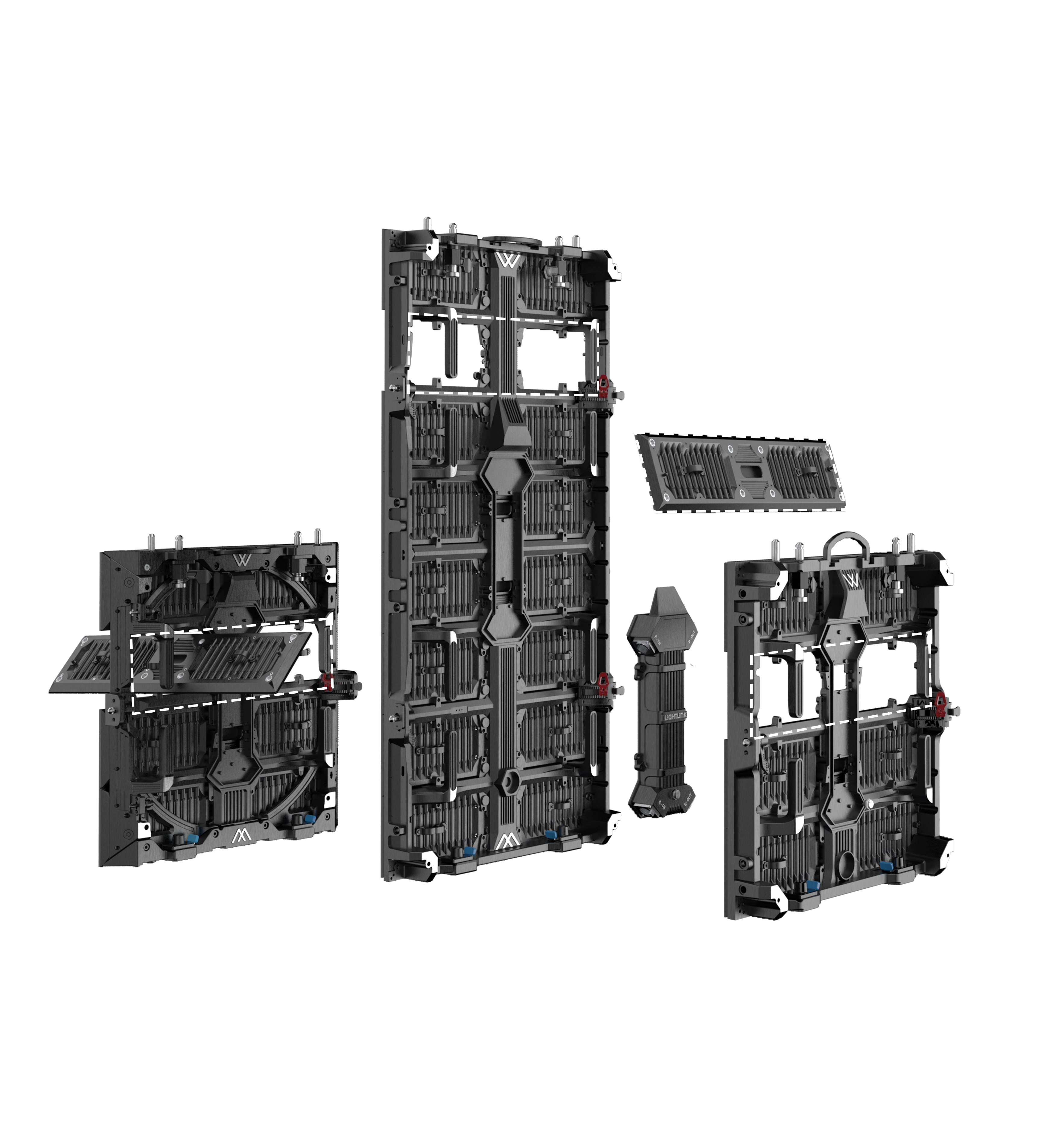

Universal power box/LED panel suitable for all Alien Series LED cabinets(A/B/C/D/E/F

Great refresh rate/grayscale

Great refresh rate/grayscale

≥7680Hz refresh rate and 16 bit

Durable & great protection

Durable & great protection

Special glue to protect the LED surface from damage

Heat-resistant PCB

Heat-resistant PCB

At least 150℃

Connector fool-proof design

Connector fool-proof design

Improve the plug connecting efficiency greatly

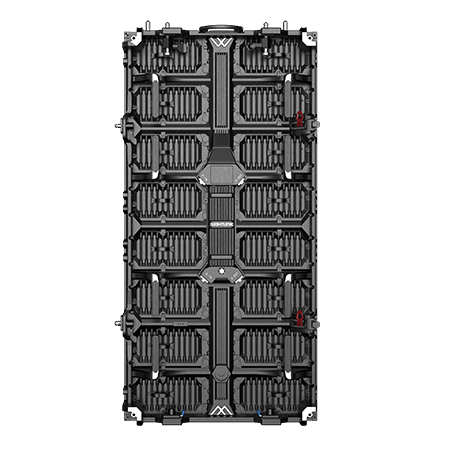

Alien A

Indoor: P2.6/P2.9/P3.9, Outdoor:P2.6/P2.9/3.9

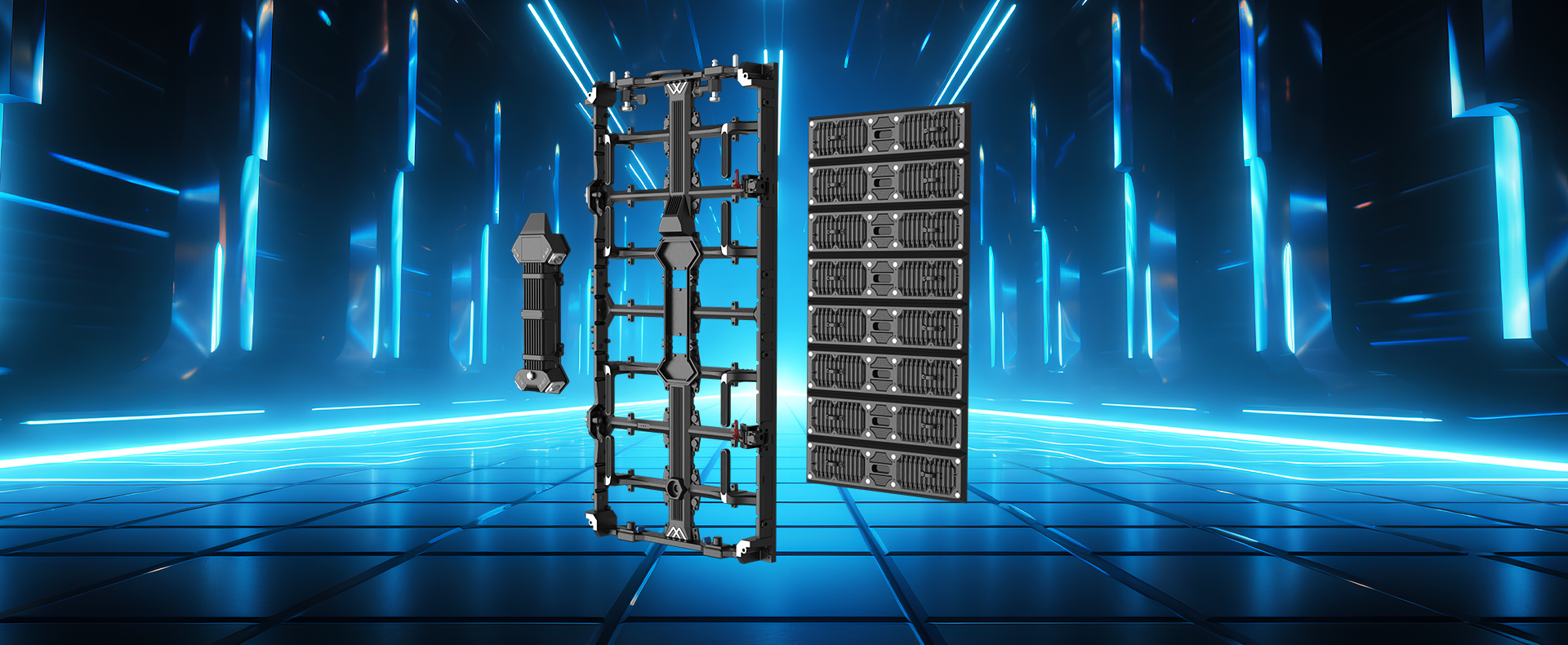

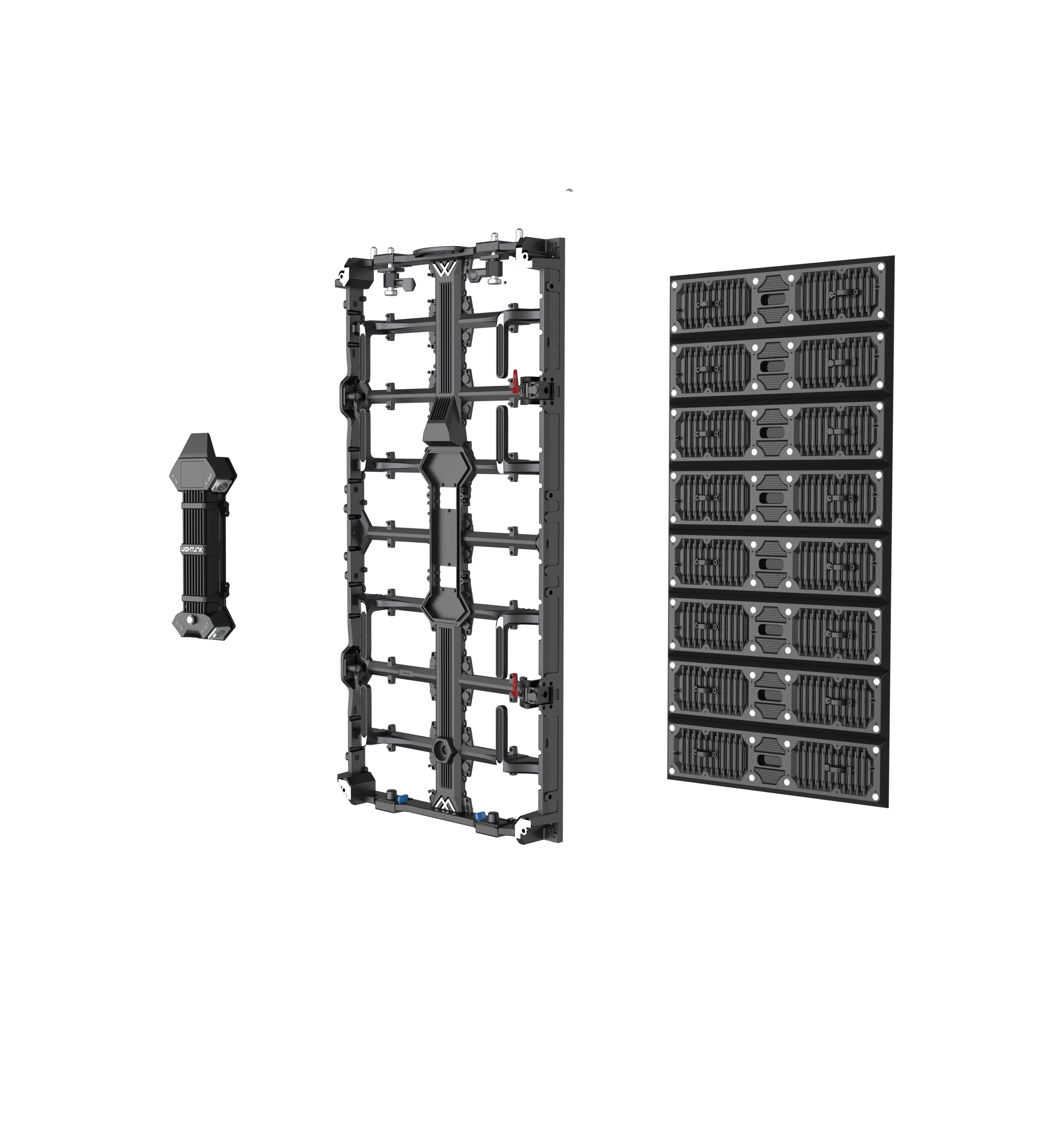

Modularized design

Modularized design

Power box+LED cabinet frame+LED panels

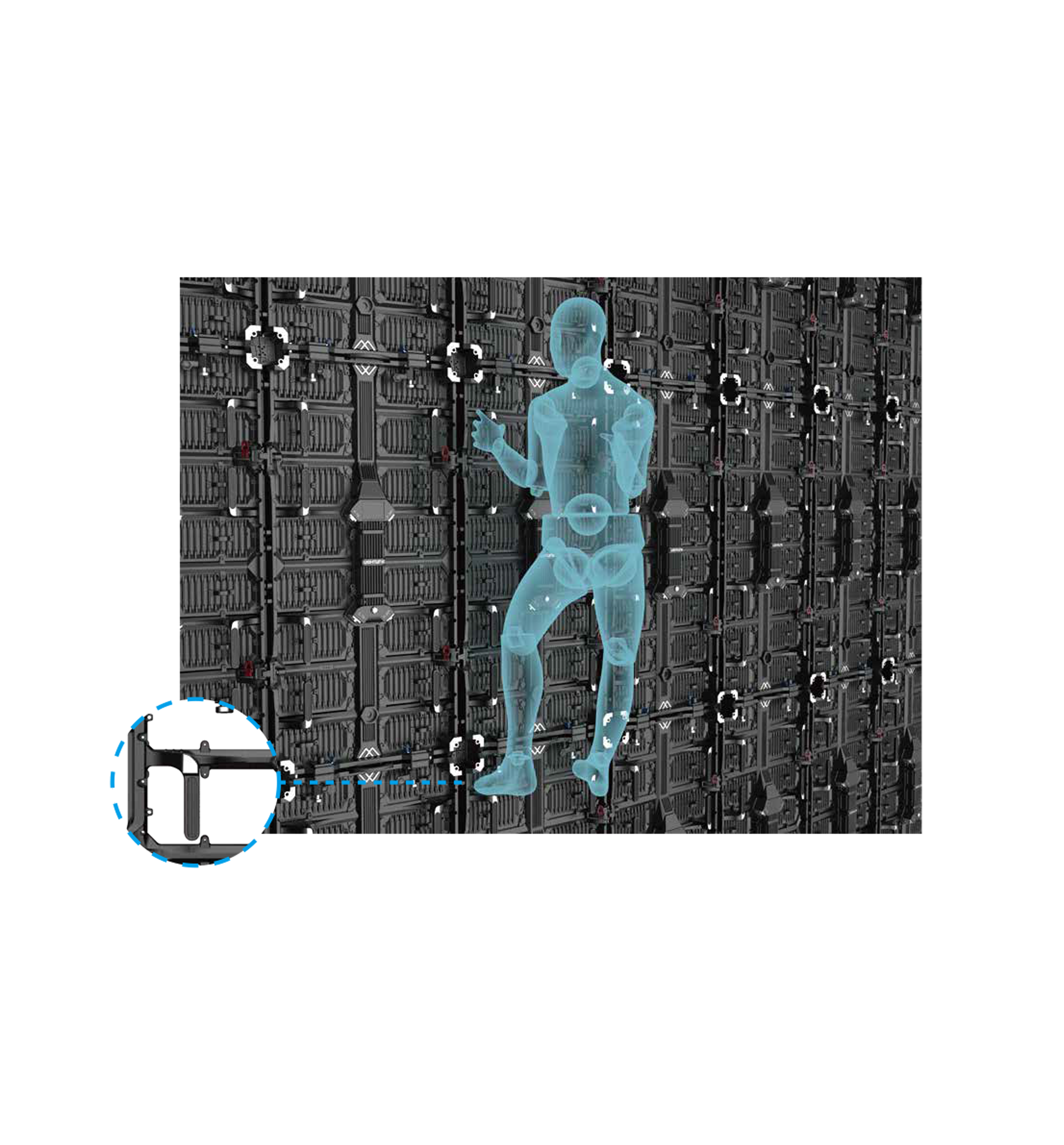

Innovative handle design

Innovative handle design

High load-carrying capacity that allows humans to climb on it directly
Magnetic module design

Magnetic module design

1pcs module with 8pcs magnets

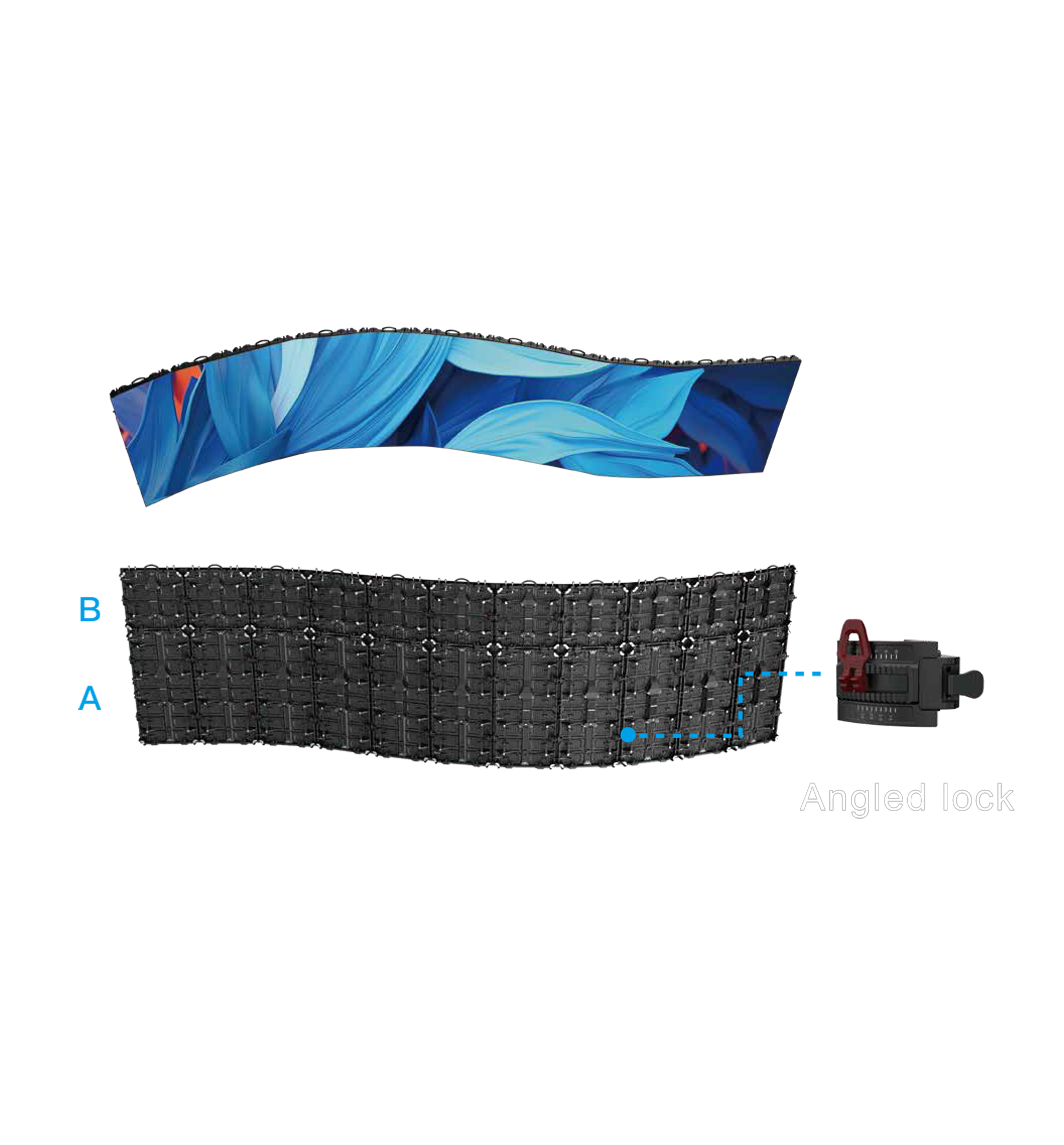

Arc lock design

Arc lock design

Indoor and outdoor boxes with different sizes of curved locks

Product parameters

  • Specifications

    WA Indoor

    WA Outdoor

  • Pixel pitch(mm)

    2.6

    2.9

    3.9

    2.6

    2.9

    3.9

  • LED type

    SMD1515

    SMD1515

    SMD2121

    SMD1415

    SMD1415

    SMD1415

  • Scan method

    1/16S,1/24S

    1/21S

    1/16S

    1/12S

    1/14S

    1/8S,1/16S

  • Module resolution(Pixels)

    192*48

    168*42

    128*32

    192*48

    168*42

    128*32

  • Module size(mm)

    500*125

  • Pixel Density(Pixels/m²)

    147,456

    112,896

    65,536

    147,456

    112,896

    65,536

  • Brightness（cd/m²)

    ≤1000/≤800

    ≤1200

    ≤1000

    ≤4500

    ≤4200

    ≤5000/≤3800

  • Cabinet weight(kg)

    10.8±5%

    11.8±5%

  • Max Input Power(W/m²)

    ≈560

    ≈650

  • Average Input Power(W/m²)

    ≈280

    ≈325

  • Refresh rate(Hz)

    ≤7680

  • Cabinet Size(mm*mm)

    500*1000*76

  • Viewing Angle(H/V)

    H:160 V:140

  • Input voltage(V)

    AC100-240V , 50/60Hz

  • Cabinet Material

    Aluminum die-casting

  • Maximum lifting/seating

    12m

  • IP Rate

    IP30

    IP65/IP54

  • Arc angle

    -10°、-7.5°、-5°、-2.5°、0°、2.5°、5°、7.5°、10°

  • Operating temperature/humidity

    -20℃ ~ +45℃，10% ~90%RH

  • Storage temperature/humidity

    -10℃ ~ +40℃，10% ~60%RH

  • Lifespan (H)

    ≥50,000
