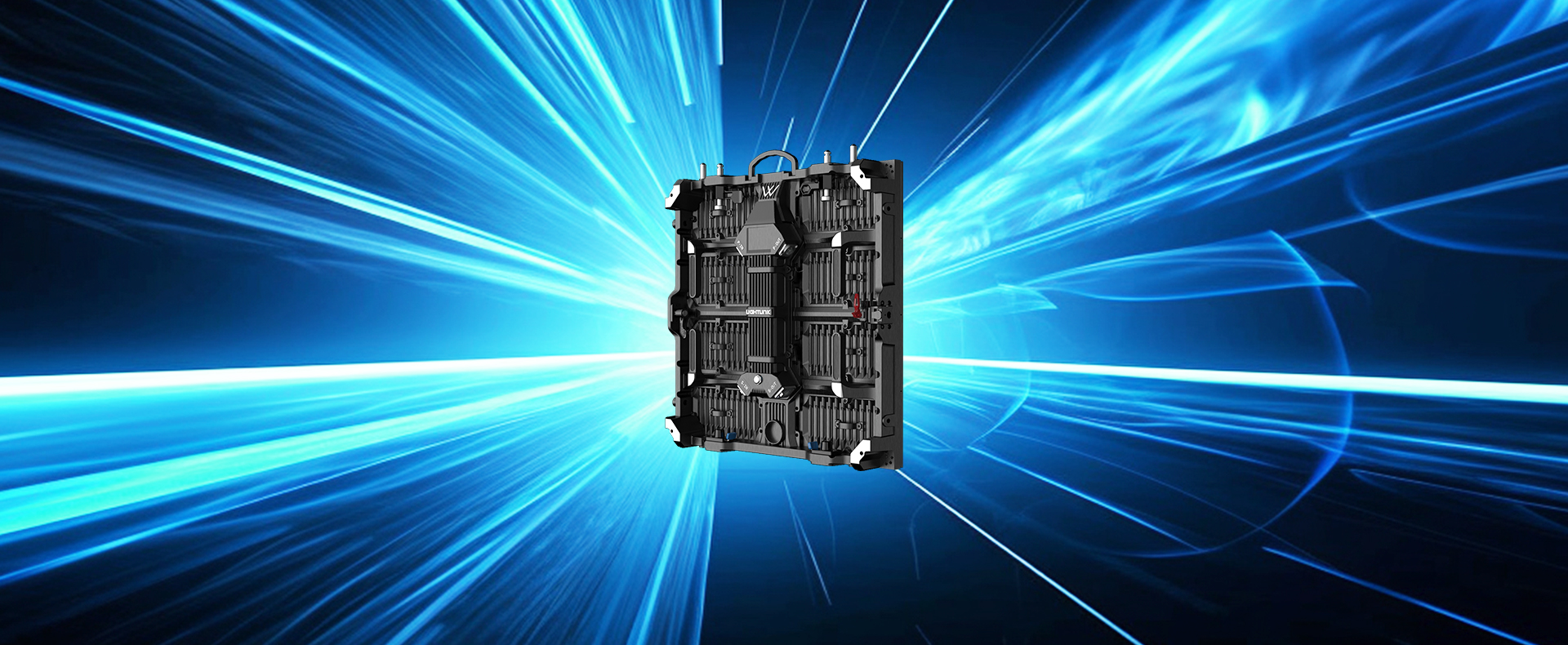

Dual air ports and In-line network port design
Universal power box/LED panel suitable for all Alien Series LED cabinets(A/B/C/D/E/F
≥7680Hz refresh rate and 16 bit
At least 150℃
Special glue to protect the LED surface from damage
Improve the plug connecting efficiency greatly
Alien B - freely spliced in various shapes
Indoor: P2.6/P2.9/P3.9, Outdoor:P2.6/P2.9/3.9

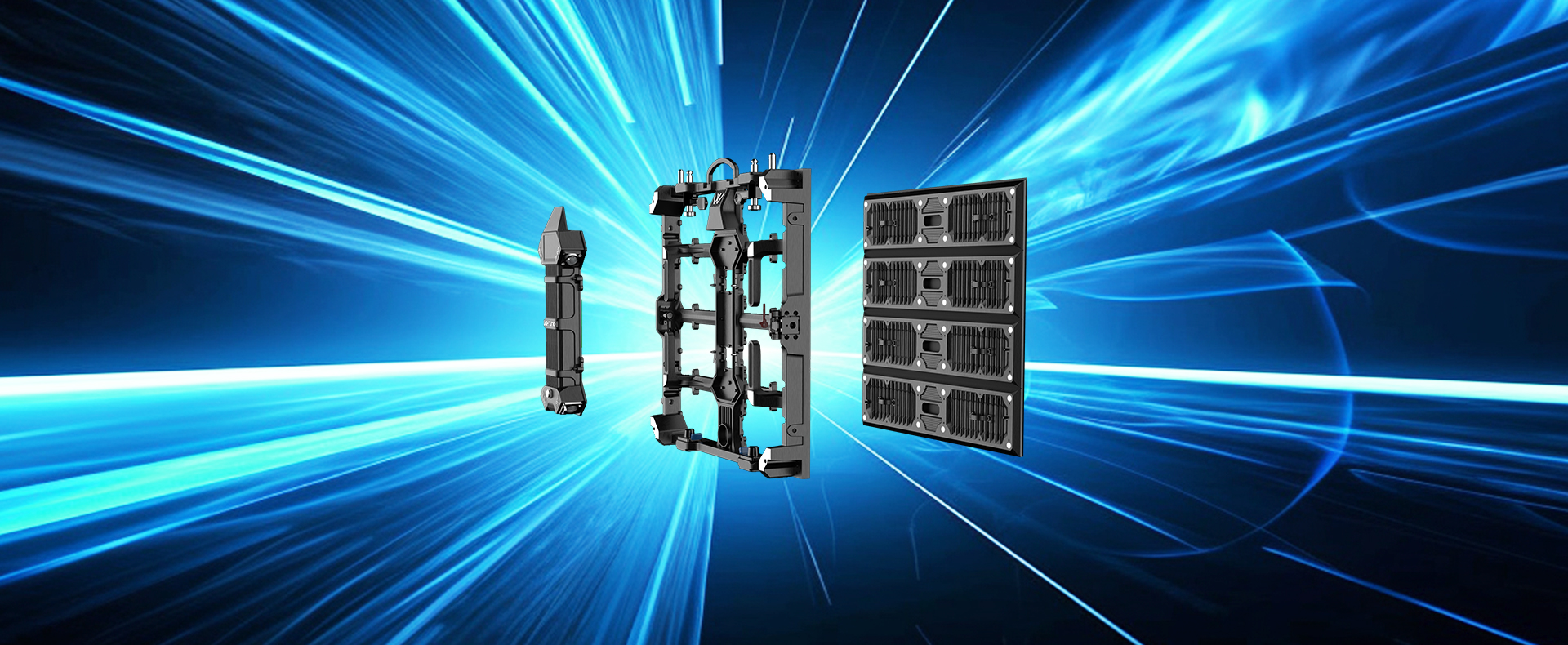

Modularized design
power box+LED cabinet frame+LED panels
Diversified LED module shell
Easy to distinguish indoor and outdoor LED module
Installations

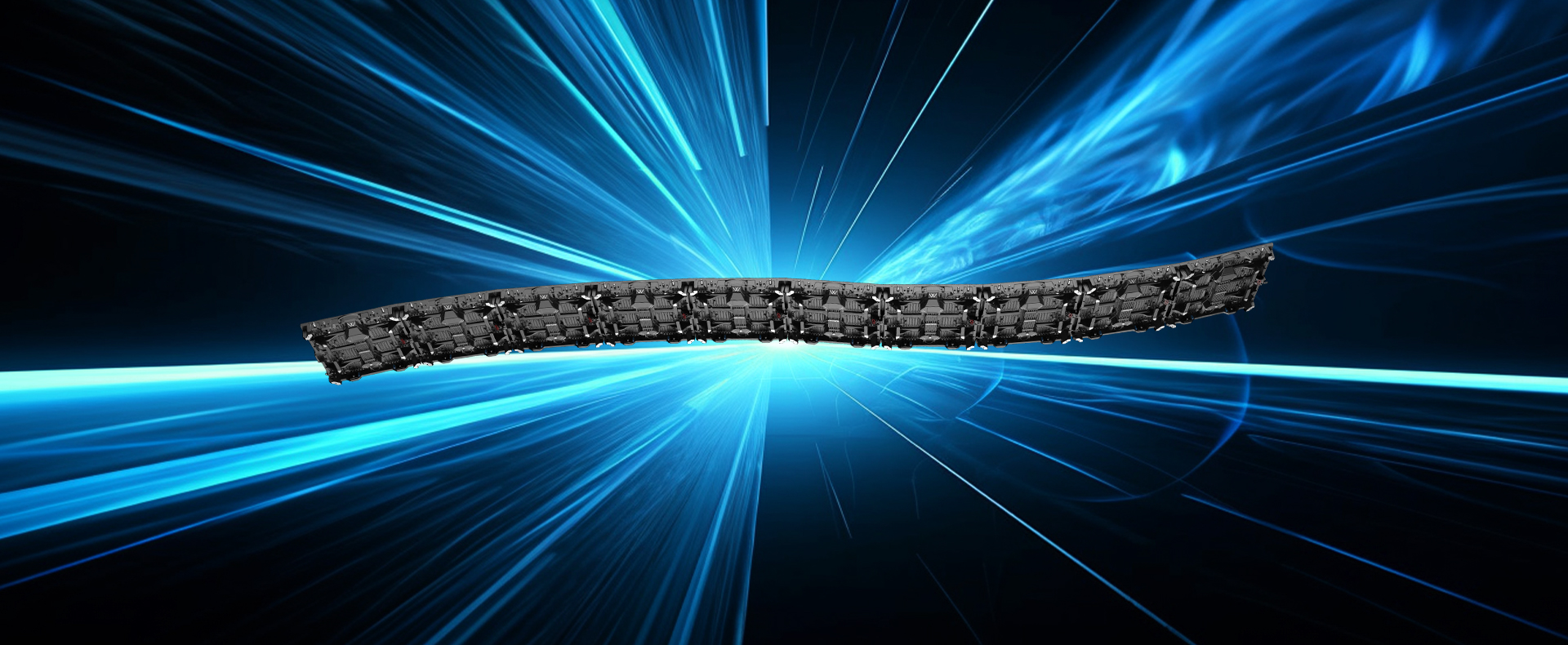

±2.5°,±5°,±7.5°,±10°,0° multifaceted and delicate arc-shaped creative assembly.
Specifications
WB Indoor
WB Outdoor
Pixel pitch(mm)
2.6
2.9
3.9
2.6
2.9
3.9
LED type
SMD1515
SMD1515
SMD2121
SMD1415
SMD1415
SMD1415
Scan method
1/16S,1/24S
1/21S
1/16S
1/12S
1/14S
1/8S,1/16S
Module resolution(Pixels)
192*48
168*42
128*32
192*48
168*42
128*32
Module size(mm)
500*125
Pixel Density(Pixels/m²)
147,456
112,896
65,536
147,456
112,896
65,536
Brightness（cd/m²)
≤1000
≤800
≤1200
≤4500
≤4200
≤5000/≤3800
Cabinet weight(kg)
6.8±5%
7.8±5%
Max Input Power(W/m²)
≈560
≈650
Average Input Power(W/m²)
≈280
≈325
Refresh rate(Hz)
≤7680
Cabinet Size(mm*mm)
500*500*76
Viewing Angle(H/V)
H:160 V:140
Input voltage(V)
AC100-240V , 50/60Hz
Cabinet Material
Aluminum die-casting
Maximum lifting/seating
12m
IP Rate
IP30
IP65/IP54
Arc angle
-10°、-7.5°、-5°、-2.5°、0°、2.5°、5°、7.5°、10°
Operating temperature/humidity
-20℃ ~ +45℃，10% ~90%RH
Storage temperature/humidity
-10℃ ~ +40℃，10% ~60%RH
Lifespan (H)
≥50,000
