Magnesium alloy panels with better strength, impact resistance and radio resistance
Gilt & fool-proofing design on connectors for better oxidation resistance and connecting stability
Applied TG(150℃) PCB to avoid short circuit and assure the flexibility of PCB

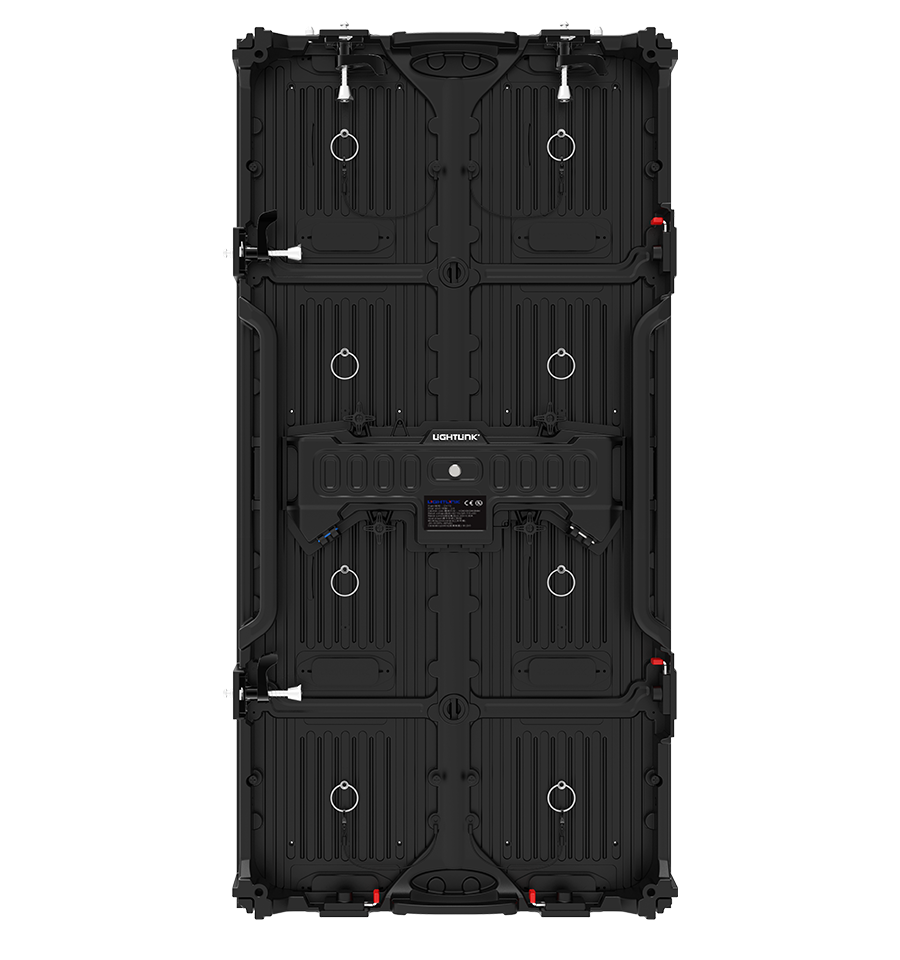

Fully wireless & magnetic module design; Detachable control box by hand only with screws
anti-collision PCB with great impact resistance + corner protection
Available in angled /90° installation /mesh design

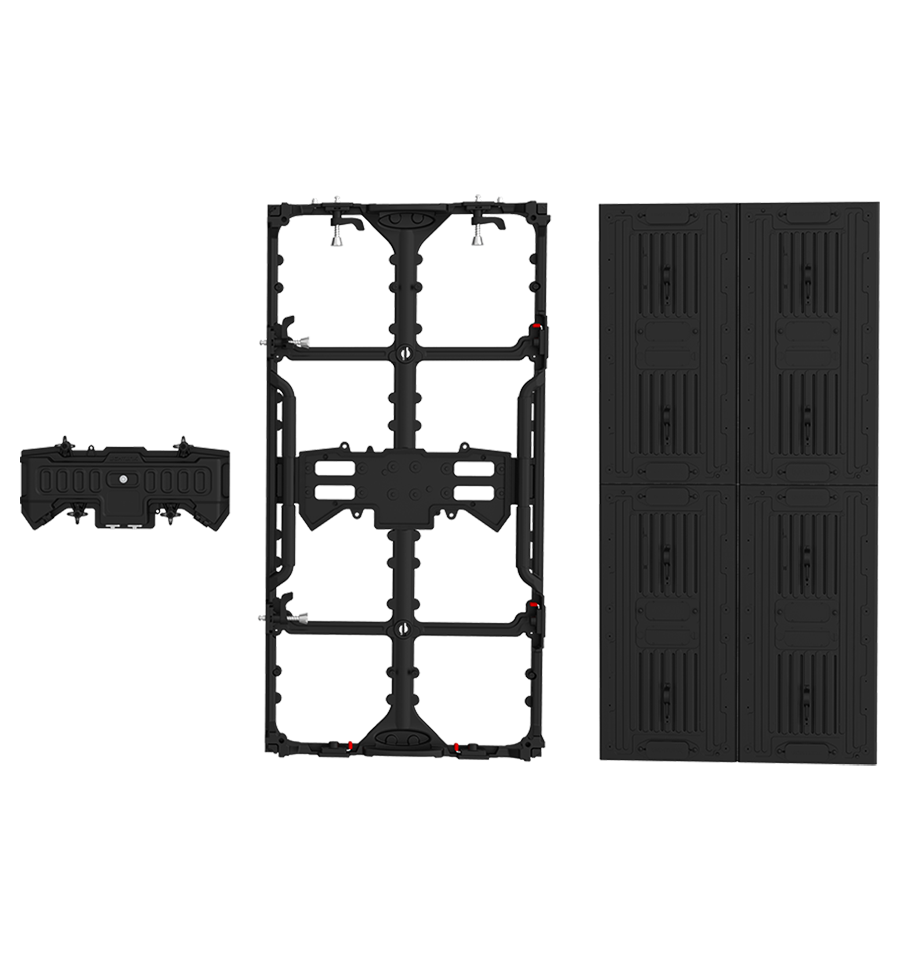

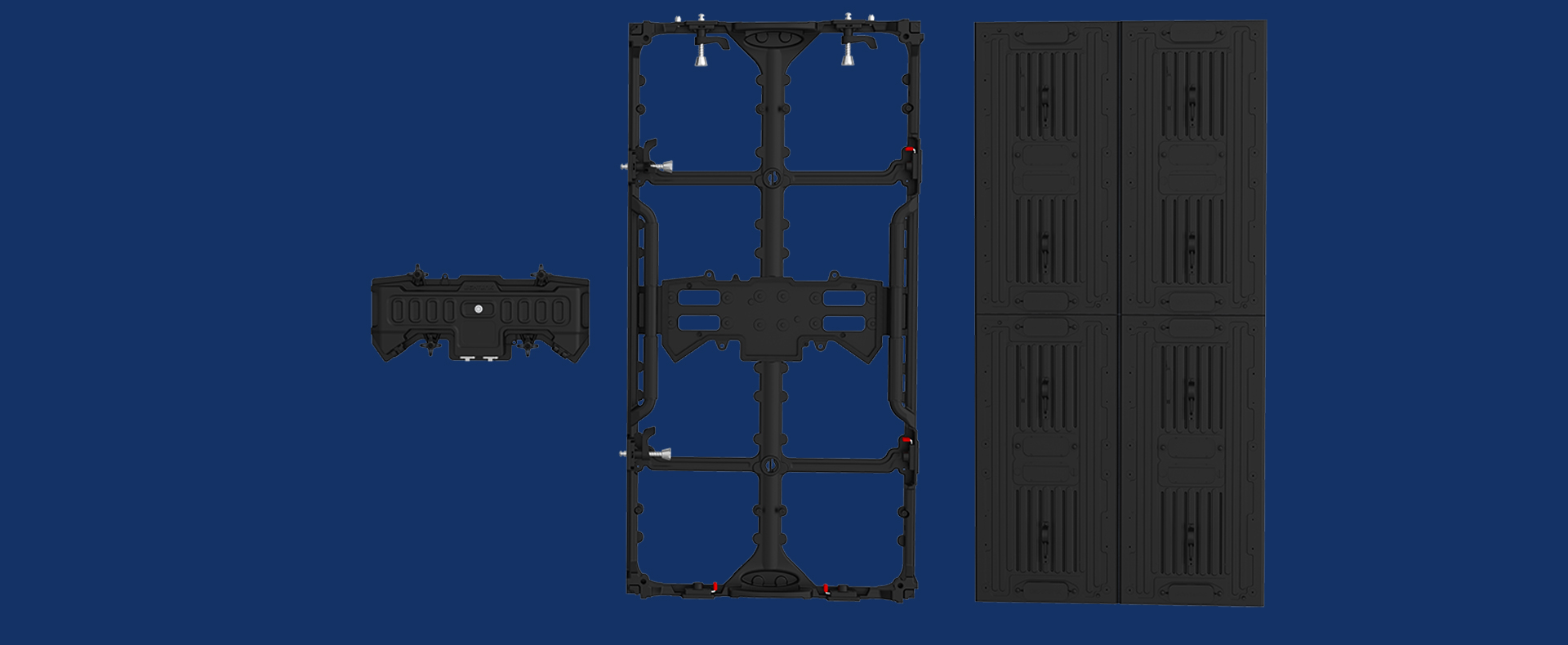

Modularized design
Detachable control box + Base plate + Magnetic module
High IPrateforoutdoor
Front&rear IP65
Mesh design
Lighter, better windproof and heat dissipation

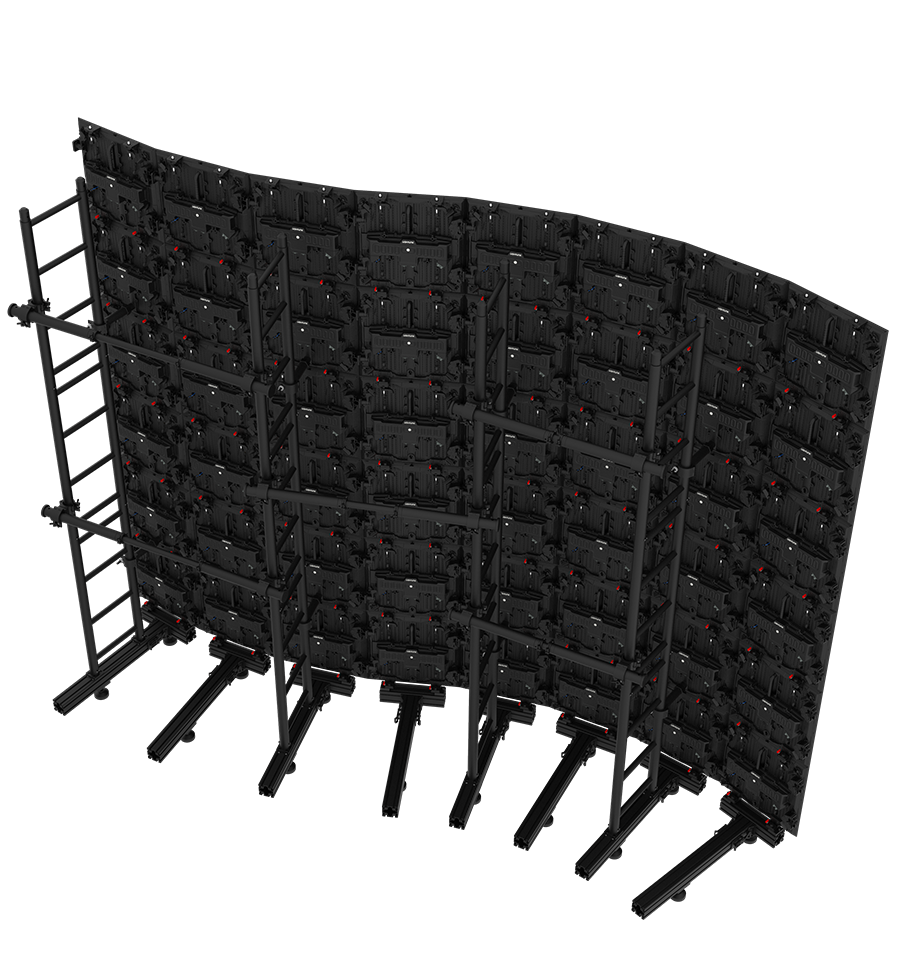

Angled installation
Convex/concave 0°，±5 ° ，±10 °
Pixel pitch(mm)
3.9
4.8
5.9
6.9
8.9
LED type
SMD 1921 3 in1
SMD 1921 3 in1
SMD 1921 3 in1
SMD 1921 3 in1
SMD 1921 3 in1
Scan method
1/8 s
1/7 s
1/7 s
1/6 s
1/7 s
Module resolution(Pixels)
64*128
52*104
42*84
36*72
28*56
Module size(mm)
250*500
250*500
250*500
250*500
250*500
Pixel Density(Pixels/㎡)
65,536
43,264
28,224
20,736
12,544
Brightness(cd/㎡)
5000/3000
5000/3000
5000/3000
3000
2000
Cabinet weight(kg)
≈11
≈11
≈11
≈9.5
≈9.5
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
Input voltage（V）
AC100-240
AC100-240
AC100-240
AC100-240
AC100-240
Max Input frequency（Hz）
50/60
50/60
50/60
50/60
50/60
Max Input Power（W/m²）
≈600
≈600
≈600
≈500
≈400
Average Input Power（W/m²）
≈300
≈300
≈300
≈250
≈200
Lifespan（H）
≥50,000
≥50,000
≥50,000
≥50,000
≥50,000
