HomeLed Displays High-end rental LED dispalys
Light, thin & durable

Light, thin & durable

Ergonomic carbon fiber cabinet design which is super light&thin with high strength, strong toughness and great heat dissipation, also easy to handle by one person

Fully modularized design

Fully modularized design

Fully magnetic & large led module 500*250mm + clip-type module handle allow for front & rear maintenance easy, and make installation efficient and reliable

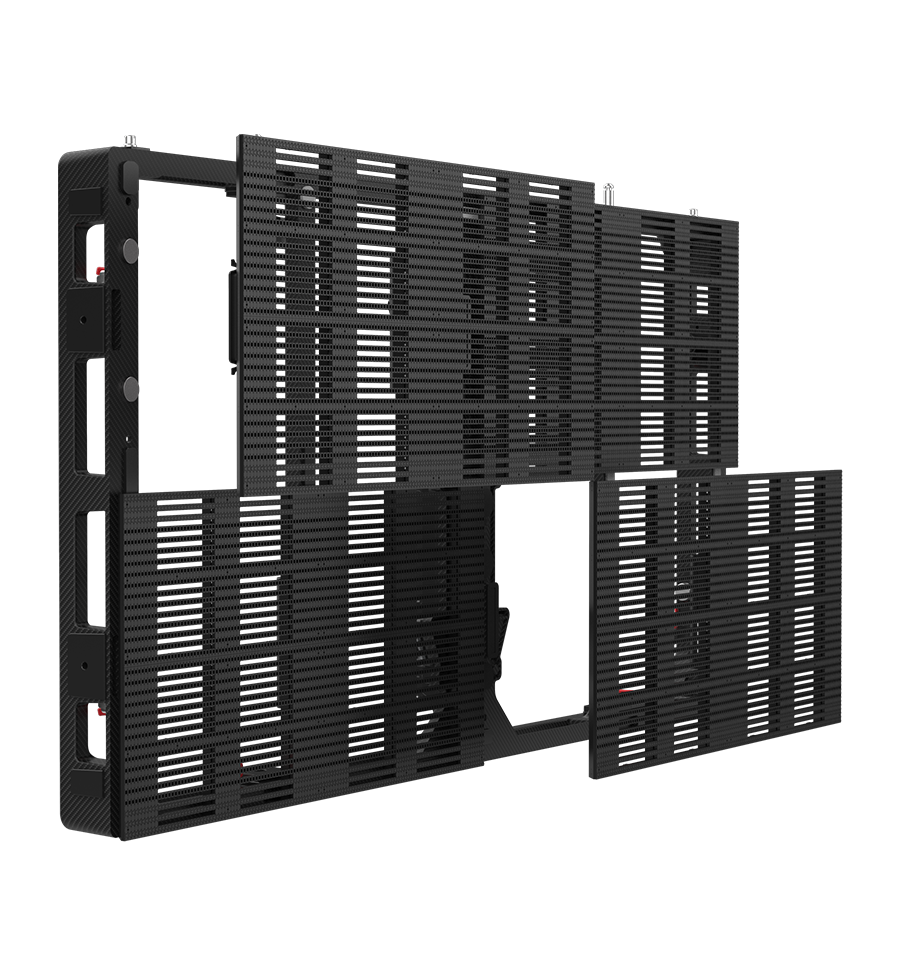

Seamless stitching with high precision

Seamless stitching with high precision

Hollow design allowed which makes its windproof ability strong and enriches the stage’s creative possibilities,wind resistance up to 25m/s

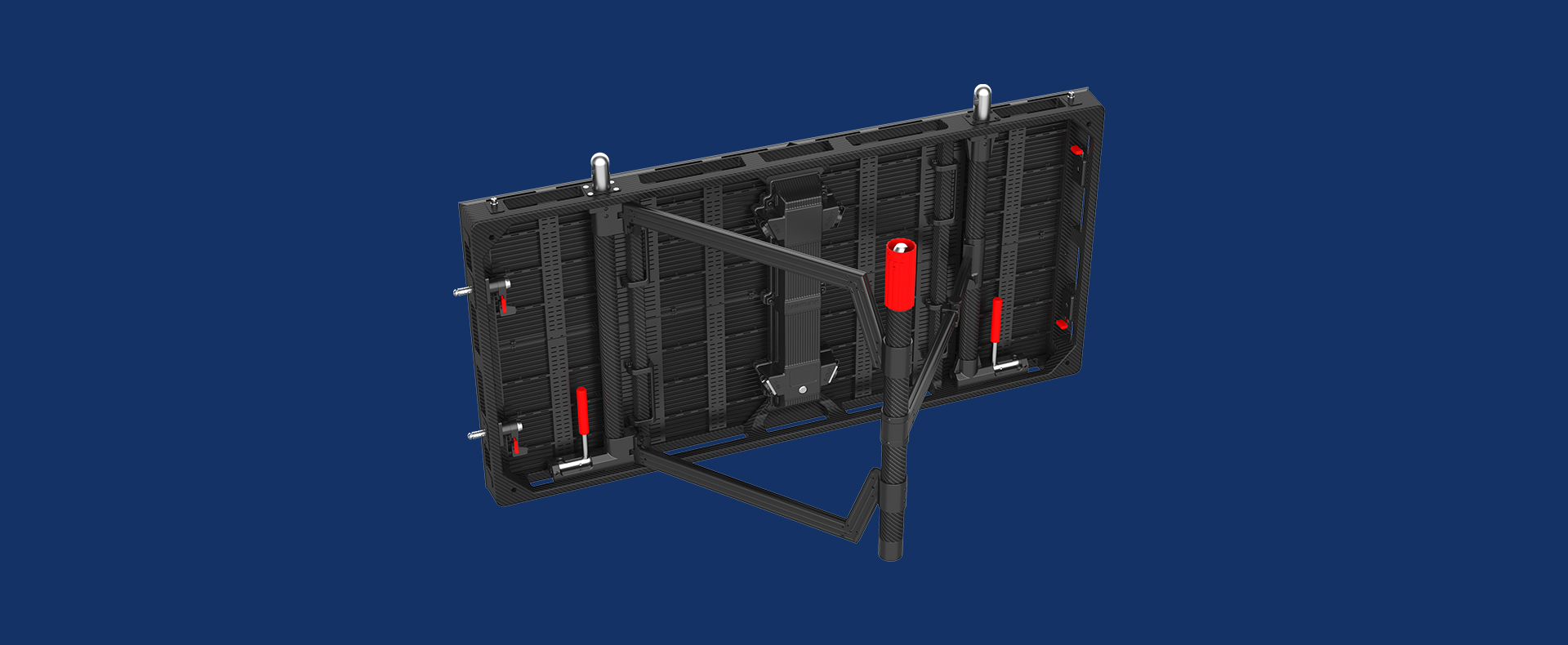

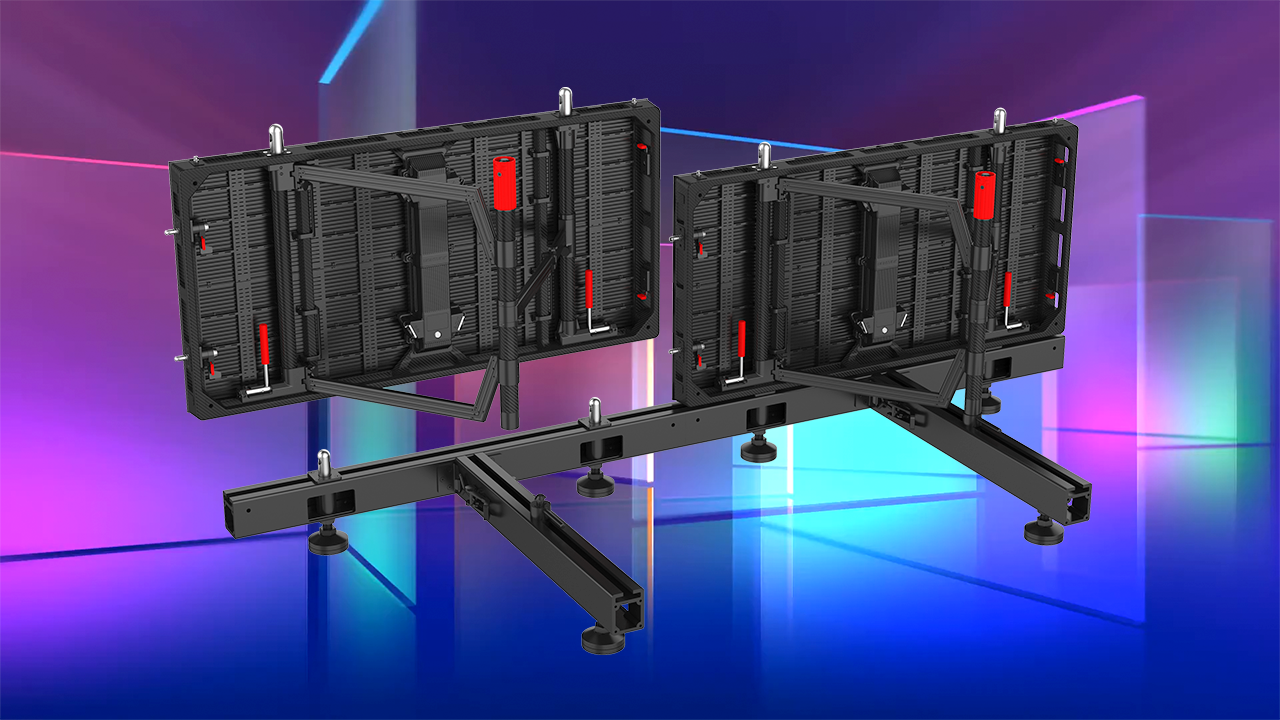

Light, stable & durable, best for super huge lightweight stage
Angle and thickness of wind brace while open

Angle and thickness of wind brace while open

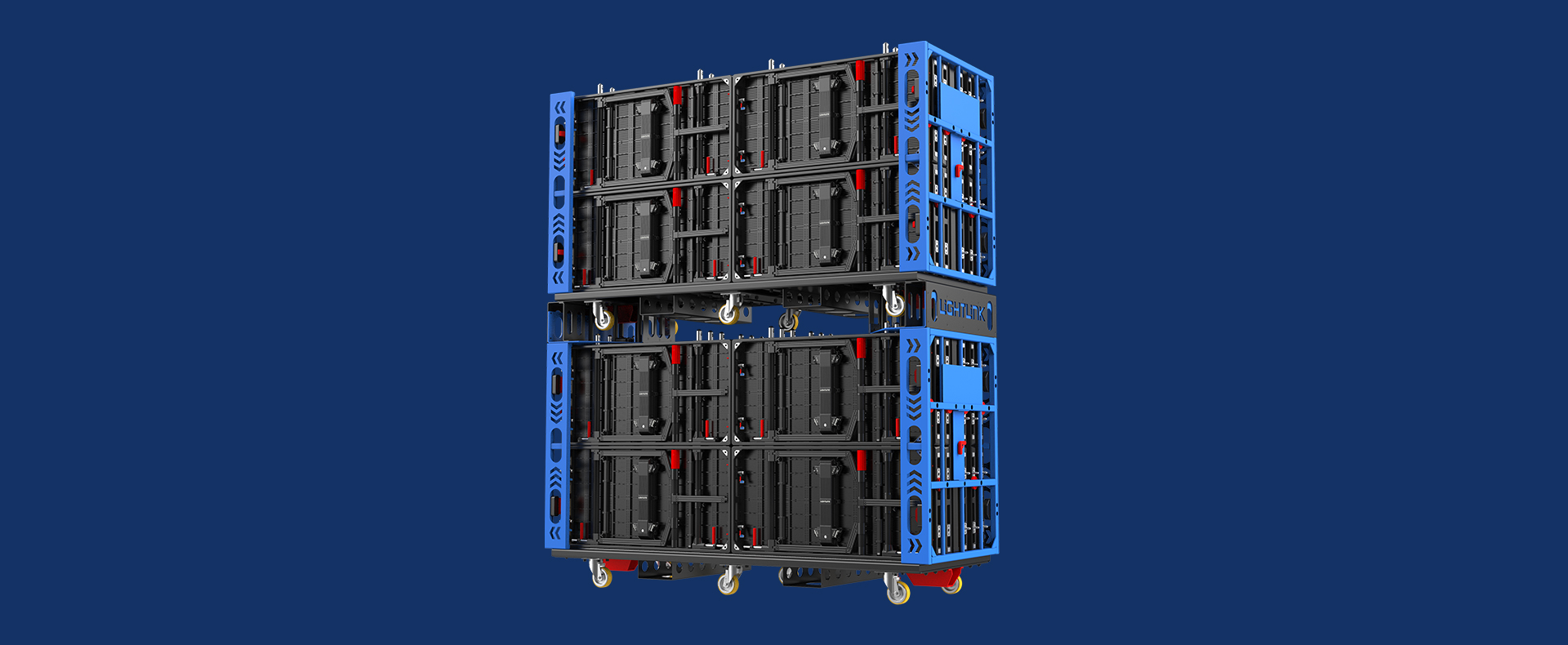

Modularized design

Modularized design

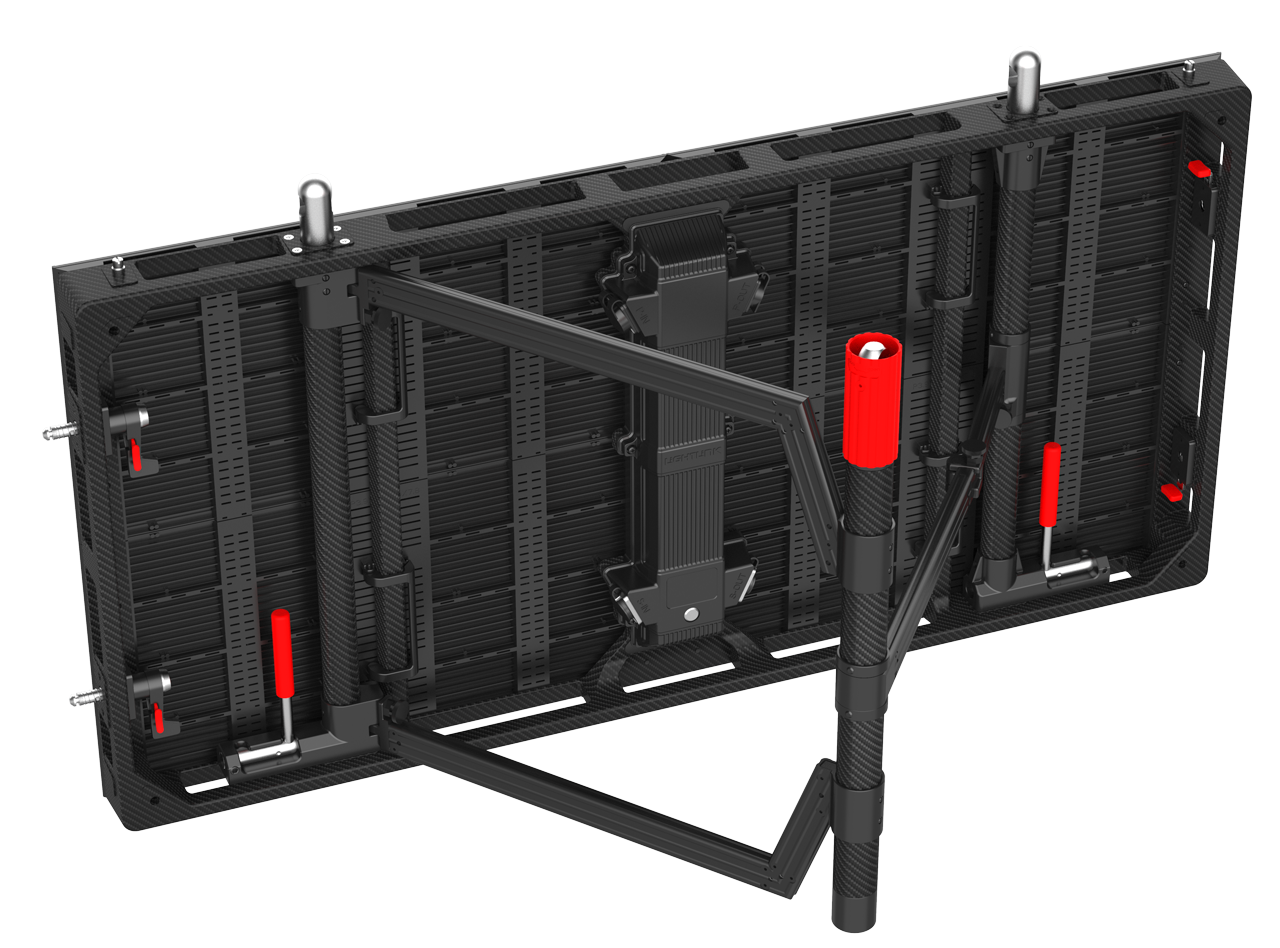

Integrated detachable control box + pure carbon fiber frame + fully magnetic modules

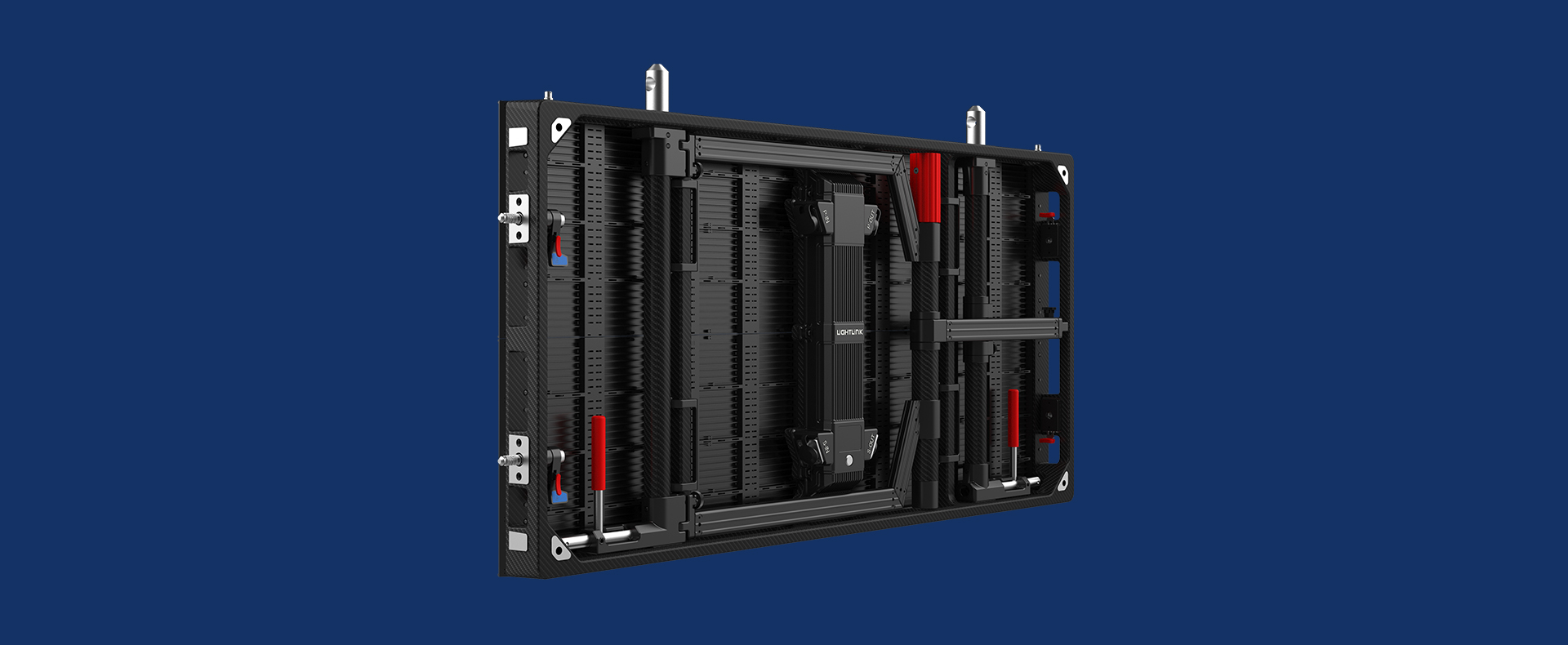

Fully magnetic & super large format led module

Fully magnetic & super large format led module

Super larger format design on led module 500*250mm, no any screws and is fully magnetic by 10pcs magnets per module to ensure its fastness, safety and efficiency, also easy for front & rear maintenance.

Product parameters

  • Specifications

    Indoor

    Outdoor

    Outdoor mesh

    Outdoor mesh

  • Pixel pitch(mm)

    H: 3.9 V: 3.9

    H: 5.9 V: 5.9

    H: 3.9 V: 7.8

    H: 5.9 V: 5.9

  • LED type

    SMD 2121

    SMD 1921

    SMD 1921

    SMD 1921

  • Scan method

    1/16s

    1/16s

    1/16s

    1/7s

  • Module resolution(Pixels)

    128*64

    84*42

    128*32

    84*42

  • Module size(mm)

    500*250

    500*250

    500*250

    500*250

  • Pixel Density(Pixels/㎡)

    65,536

    28,224

    32,768

    28,224

  • Brightnes（s cd/㎡）

    800

    4000-5000

    3000

    4000-4500

  • Viewing Angle(H/V)

    H:140 V:140

    H:140 V:140

    H:140 V:140

    H:140 V:140

  • Cabinet Size(mm)

    1000(W)*500(H)*63(D)

    1000(W)*500(H)*63(D)

    1000(W)*500(H)*63(D)

    1000(W)*500(H)*63(D)

  • Cabinet Material

    Carbon fiber

    Carbon fiber

    Carbon fiber

    Carbon fiber

  • Cabinet weight(kg)

    ≈7.8

    ≈8.3

    ≈7.8

    ≈7.8

  • Refresh rate(Hz)

    ≥3840

    ≥3840

    ≥3840

    ≥3840

  • Input voltage（V）

    AC110,220,110-240

    AC110,220,110-240

    AC110,220,110-240

    AC110,220,110-240

  • Max Input frequency（Hz）

    50/60

    50/60

    50/60

    50/60

  • Max Input Power（W/m²）

    ≈600

    ≈600

    ≈200

    ≈300

  • Average Input Power（W/m²）

    ≈300

    ≈300

    ≈200

    ≈300

  • Lifespan（H）

    ≥50,000

    ≥50,000

    ≥50,000

    ≥50,000

  • Transparency

    NO

    NO

    NO

    NO

  • Maintenance

    Front&rear

    Front&rear

    Front&rear

    Front&rear

  • IP Rate

    IP 20

    IP 65

    IP 65

    IP 65
