It's a real-world engineering validation of Lightlink’s Black Panther A.
As large-scale tours, music festivals, and sports events continue to scale up, 20m+ ultra-high LED rigging is becoming a standard configuration for immersive stage productions.
This test was designed to address key customer concerns following:
- Is structural safety still sufficient at extreme rigging heights?
- Can stable performance be maintained in complex structural environments?
- Will the system remain reliable under real-world conditions such as heat, strong wind, and heavy rain?
See how it performs in a real-world test: https://www.instagram.com/p/DaRjpSFO3t2/
▶ Closer to real projects, higher validation value

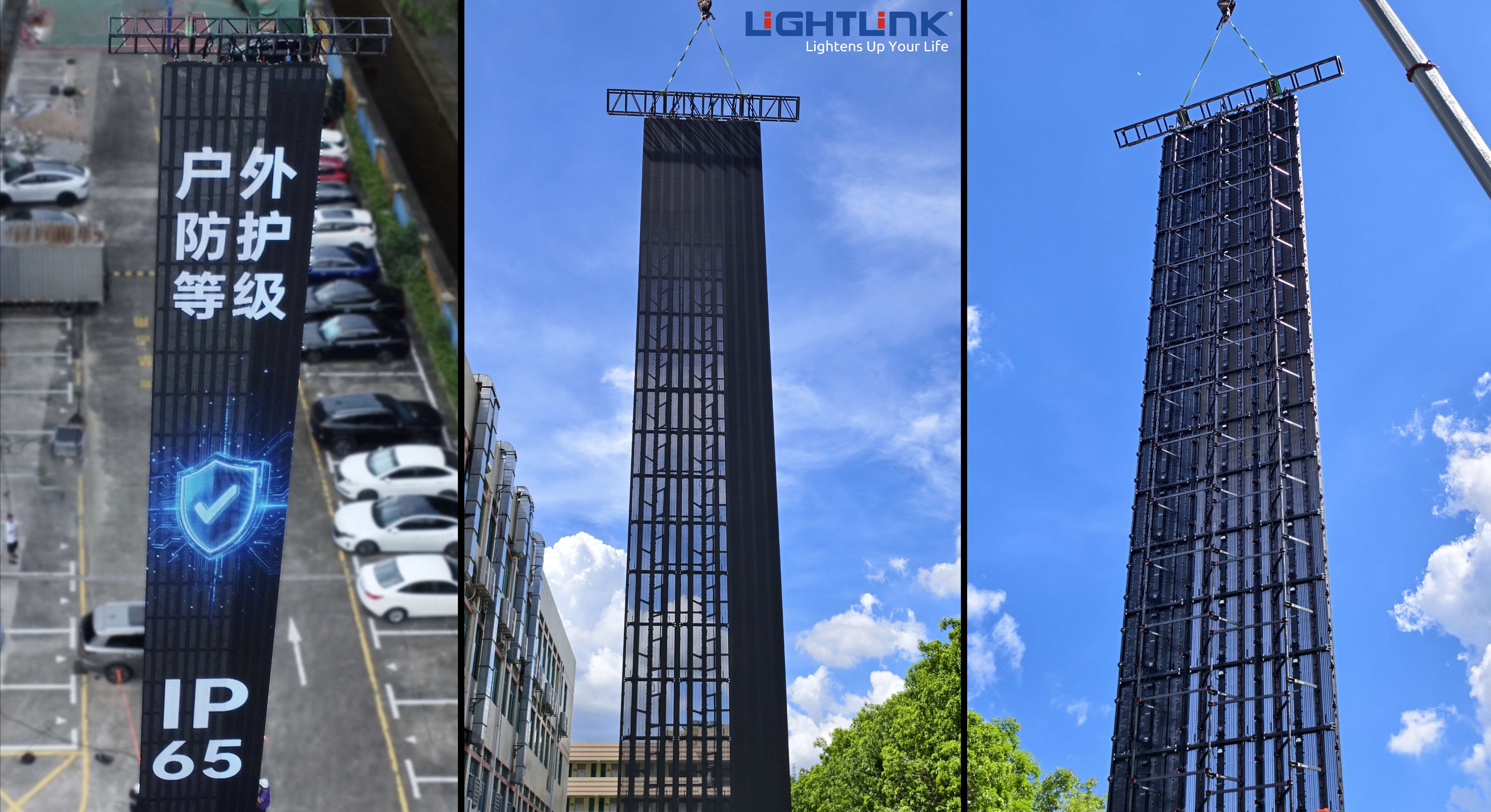

To ensure realistic testing conditions, Black Panther A was deployed in two structural configurations at 20m ultra-high rigging:
- High-transparency open mesh structure
- Louver-based solid structure

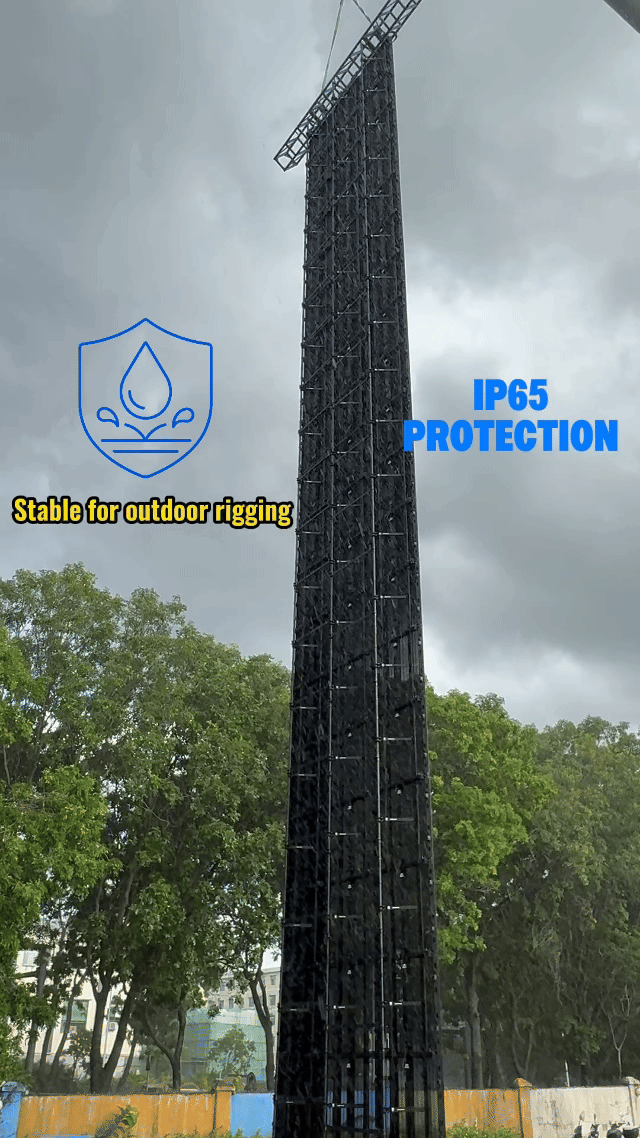

Compared to open mesh, the louver configuration presents a larger wind load surface, placing higher demands on structural stability, wind resistance design, and rigging safety—closely reflecting real touring and live event scenarios. More importantly, the test was conducted under uncontrolled weather conditions. The day shifted from intense heat in the morning to sudden strong winds and heavy rain in the afternoon.
This continuous exposure to real environmental stress significantly increases the validity of the test results and further proves Black Panther A’s engineering reliability in complex conditions.
▶ Customers don't just need lighter systems - they need safe efficiency

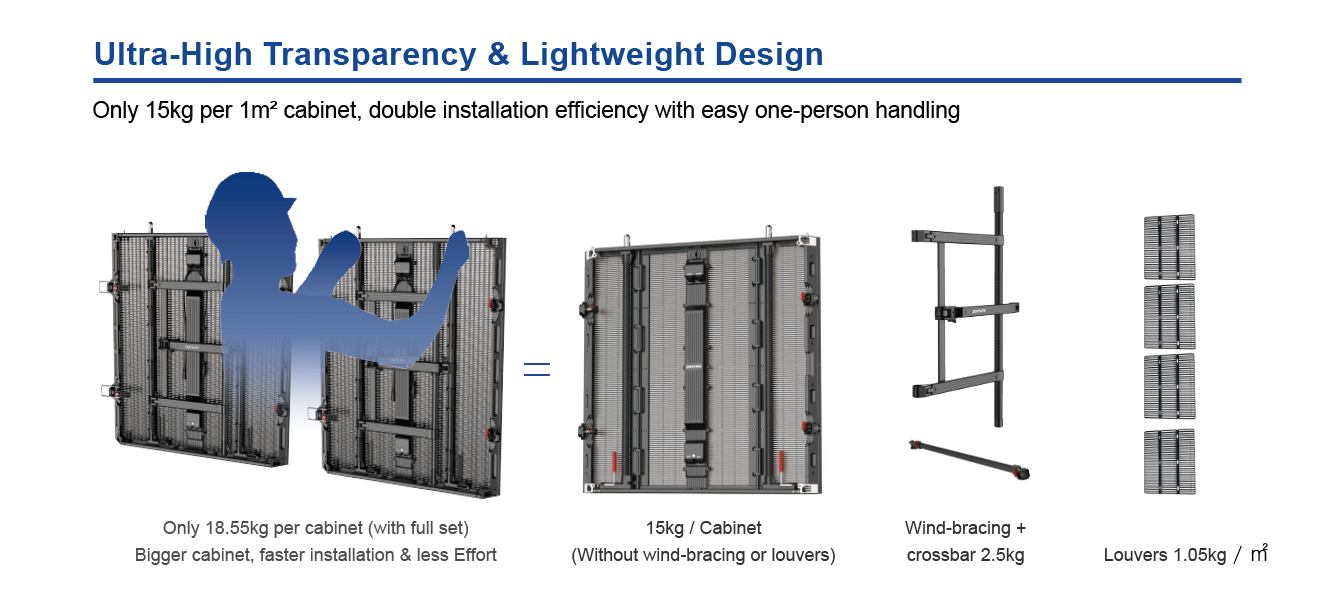

Black Panther A achieves a minimum weight of 15kg per 1m² cabinet. This extreme lightweight design does not compromise structural strength. Instead, it is achieved through structural optimization, high-strength materials, and system-level force redistribution.
For customers, the key value lies in:
- Reduced load on ultra-high rigging systems, improving safety margins;
- Lower stress on trusses and rigging points, enhancing system stability;
- Reduced labor intensity in handling and installation, improving efficiency.
▶ A touring LED wall is a system, not a single structure
The complexity of touring LED systems comes not only from height, but from multi-system coordination. Black Panther A is not designed around wind resistance alone, but built as a complete engineering system:
- Structural Layer: lightweight yet high-rigidity design for stability at height;
- Connection Layer: modular hard-lock system for consistency and deformation resistance;

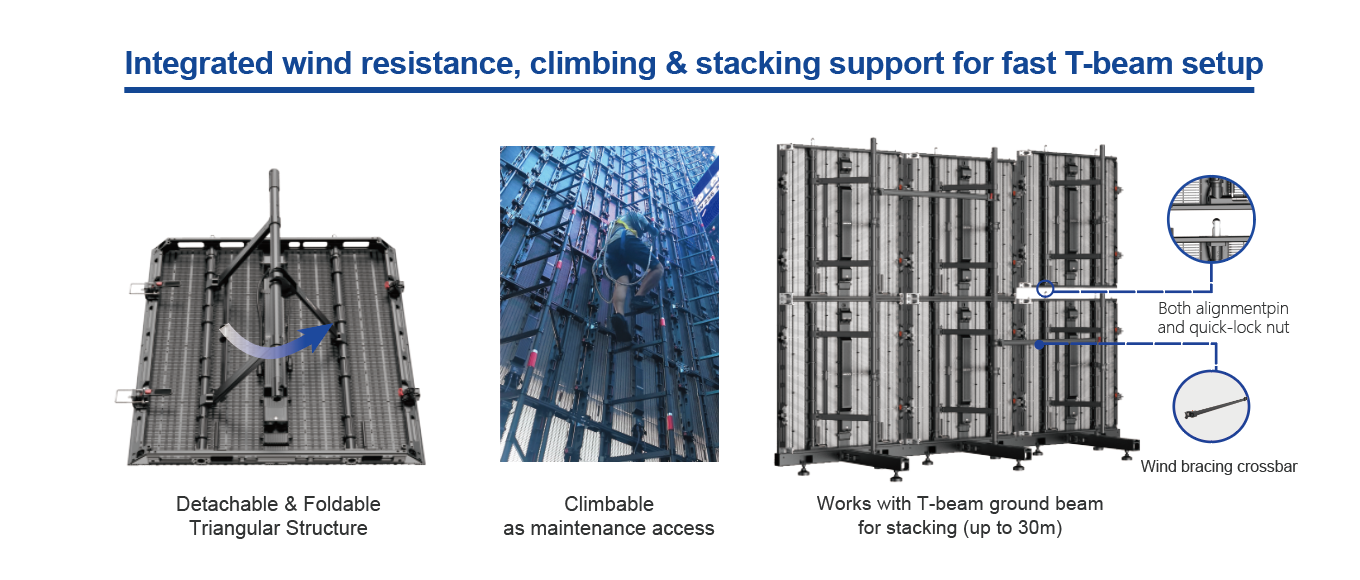

- Maintenance Layer: front & rear access with integrated wind-bracing channel design;
- Transport Layer: touring dolly system with standardized stacking for fast deployment.
Wind-bracing is only one part of the system - not the core. True touring reliability comes from the synergy of all subsystems under a unified engineering logic. The strength of Black Panther A lies in system integrity, not single-point reinforcement.
▶ True reliability reduces uncertainty and unlocks creative freedom
For clients, the value of a large LED system is not only stability, but also reduced uncertainty in complex projects while preserving creative flexibility.
Beyond this 20m validation, Black Panther A has already been deployed in multiple touring and commercial projects worldwide over the past two years, continuously proven under real operating conditions. It also supports a multi-configuration system upgrade, allowing switching between:

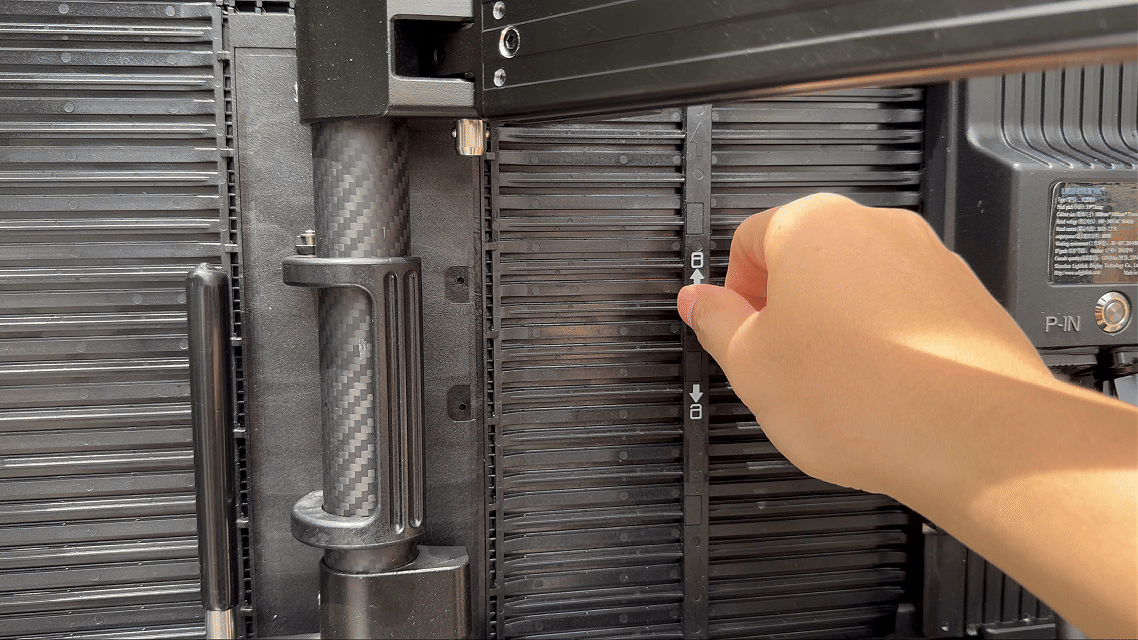

- Louver solid mode
- High-transparency open mesh mode
This enables one system to serve both structural reliability and stage design flexibility. True reliability is not about limiting choices - it is about making them more efficient.
▶ 20m is only the test height. Customer confidence is the final validation.
Every design solves a real project challenge. Every test is designed to validate system capability before deployment - not to create marketing numbers.
For Lightlink, engineering tests are not about showcasing figures, but about eliminating uncertainty in advance - so that confidence is built in testing, not risked on site.
